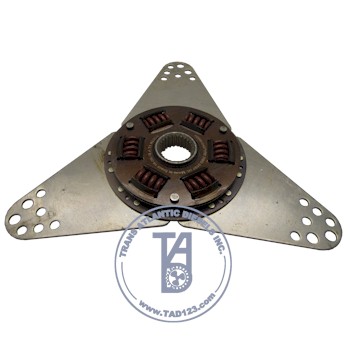

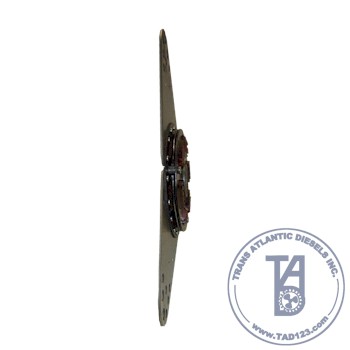

DP-700
Drive/Damper Plate

Drive Plate | DP-700

Commonly used on Gas or Diesel Engines with Velvet Drive Transmissions.

Please reference DP-700 when you call or email us.

Prices are made available by email or phone.

Request Purchasing Info

or call us at 1-804-642-9296 for more information.

The following list will help you in gathering the necessary information to identify your replacement drive/damper plate between your engine and transmission.

  • Engine & transmission make/model
  • Dimensions of current plate
  • Number of splines on transmission shaft
  • Bolt holes & measurements

Measurements for this drive plate can be found below.

Measurements shown below are accurate to the best of our ability.
If you find any need to verify or have questions please email or call our office.

Drive Plate DP-500

A - 13.32"
(Outside Diameter)

B - See Diagram Below
(Pitch Circle Diameter of Bolt Holes)

C - 0.66"
(Thickness of Plate)

D - 0.82"
(Depth of Shaft Center)

E - 1.35"
(Shaft Diameter)

F - 26
(Number of Splines)

G - Multi
(Number of Bolt Holes)

H - 6
(Number of Springs)
