ZF Hurth 85 IV
Marine Transmission

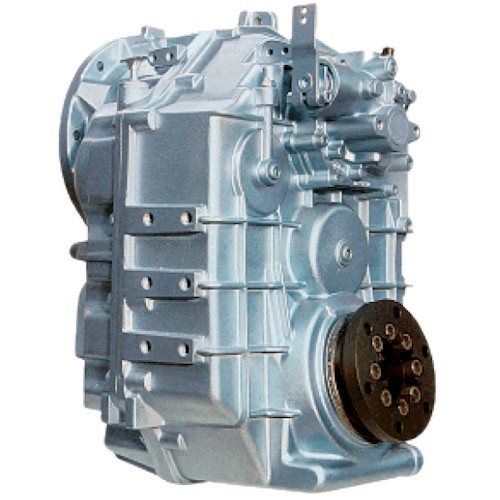

ZF Hurth 85 IV Marine Transmission
Maximum Input **
DUTY KW HP RPM
Pleasure 390 523 3500
Light 365 490 3500
Medium 311 417 3500
Continuous 232 312 3200
** Must Not Be Exceeded

ZF 85 IV Description

Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.

Suitable for high performance applications in motoryachts, sport fishers, express cruisers etc.

Fully works tested, reliable and simple to install.

Design, manufacture and quality control standards comply with ISO 9001.

Compatible with all types of engines and propulsion systems, including water jets and surface piercing propellers, as applicable.

Robust design also withstands continuous duty in workboat applications.

ZF 85 IV Features

B/W connection integrated with casing.

Case hardened and precisely ground gear teeth for long life and smooth running.

Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable.

Suitable for twin engine installations (same torque capacity in ahead or astern mode).

Compact, space saving design due to 12° vee-angle and beveloid gear.

Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.

Oil drain plug

Lightweight and robust aluminum alloy casing (sea water resistant).

Replaceable oil filter cartridge.

Integrated bosses for speed pick-up installation at output flange.
