Velvet Drive 5000V
Marine Transmissions

Velvet Drive 5000V Series

Velvet Drive 71 & 72 Series Inline Transmissions

Specifications

The Velvet Drive Marine Series 5000V is the latest member of the Velvet Drive transmission family. The Series 5000V is designed specifically for v-drive applications. Its fully reversing feature allows for a twin engine layout using "automotive" rotating engines, while the 12 degree down angle between the input and output shafts allows the desired system installation. The coupling flange, located on the opposite side to the engine and hollow output shaft, provides position and ease of propeller shaft alignment. The compact design and aluminum case provide a lighter and considerably shorter package than the 70 Series v-drive. The improved hydraulic system, with reduced parasitic losses, offers more power to the propeller. The Series 5000V has the same engine adaptation features as the 70 Series and Series 5000 down angle.

TAD offers Rebuilt exchange Velvet Drive 5000V Transmissions. We can rebuild yours or offer one of our rebuilds on an exchange basis (subject to availability). When enquiring, you will need to furnish information from the original data plate. Model, Reduction, Size of output coupling which comes in 4” & 5”. There is a penalty for core transmissions that are returned in a non-rebuildable condition i.e. bad casings, gear damage, excessive input shaft wear or require more than service items to rebuild them.

Service Items include but not limited to:

  • Bearings
  • Bushings
  • Clutches
  • Springs
  • Oil Pump
  • Gaskets
  • "O" Rings
  • Seals
  • Fasteners

You can ship your core in ahead of time, we will inspect it and determine if it is an acceptable core. Our testing process carried out on completion, checks for Oil Pressures, Oil Flow and Temperatures in Forward and Reverse. Transient boaters can expect priority service. Call us for pricing and availability.

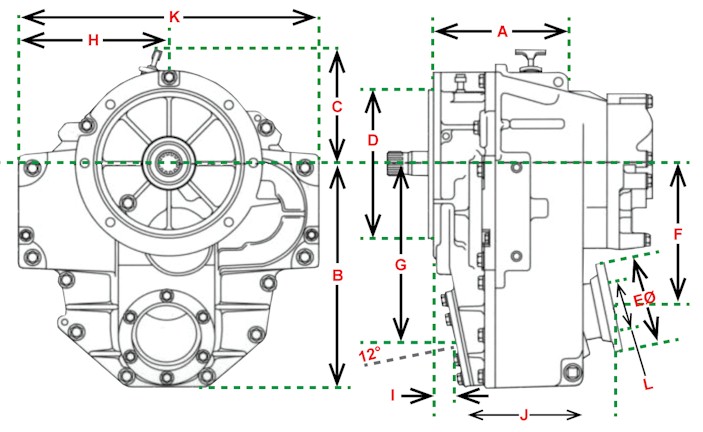

Dimensions For 5000V Series

inches (millimeters)
A B C D E F G H I J K L
12.10
(307)
12.40
(316)
6.37
(161.8)
8.25
(209.55)
5.00
(127)
7.90
(200)
9.80
(248)
8.23
(209)
1.10
(28)
10.00
(254)
16.46
(418)
3.50
(63.50)

General Information

Available Ratios: 11.25, 1.50, 2.00, 2.50:1
Input Shaft Spline Teeth: 26
Input Shaft Rotation: Standard automotive rotation
Output Shaft Rotation: Either direction
Approximate Dry Weight (direct drive): 133 lb. (60.4 kg.)

Purchase a Velvet Drive 5000V Series Marine Transmission

Prices are made available by email or phone.

Request 71 Series Purchasing Info

or call us at 1-804-642-9296 for more information.

TAD Tech-Assist

Don’t forget to inspect the Damper Drive Plate Coupling while the transmission is removed. This is a wear item and is normally replaced while the transmission is removed. TAD carries a good stock of these plates.
