Velvet Drive Liberty 3000 Series
Marine Transmission

Velvet Drive Liberty 3000 Series

Velvet Drive Liberty 3000 Series Transmissions

Features and Benefits

From first sight you will notice a robust ribbed aluminum housing specifically designed for both strength and light weight. Every part is manufactured to the highest standards in the industry to give you “Freedom on the Water” confidence.

Power packed with 505 ft./lbs. of torque and available in 6 ratios from 1.00:1 to 2.8:1, the Liberty Series gives you the most torque and the widest range of ratios available size-for-size in the industry.

  • Robust ribbed aluminum housing = “Bullet proof” design
  • BGround gearing throughout = Whisper quiet operation
  • Various mounting options = Easy interchangeability with existing Velvet Drive and competitive models
  • Exact ratio in forward and reverse = Zero torque steer
  • Smaller drive package = More usable boat space where it counts

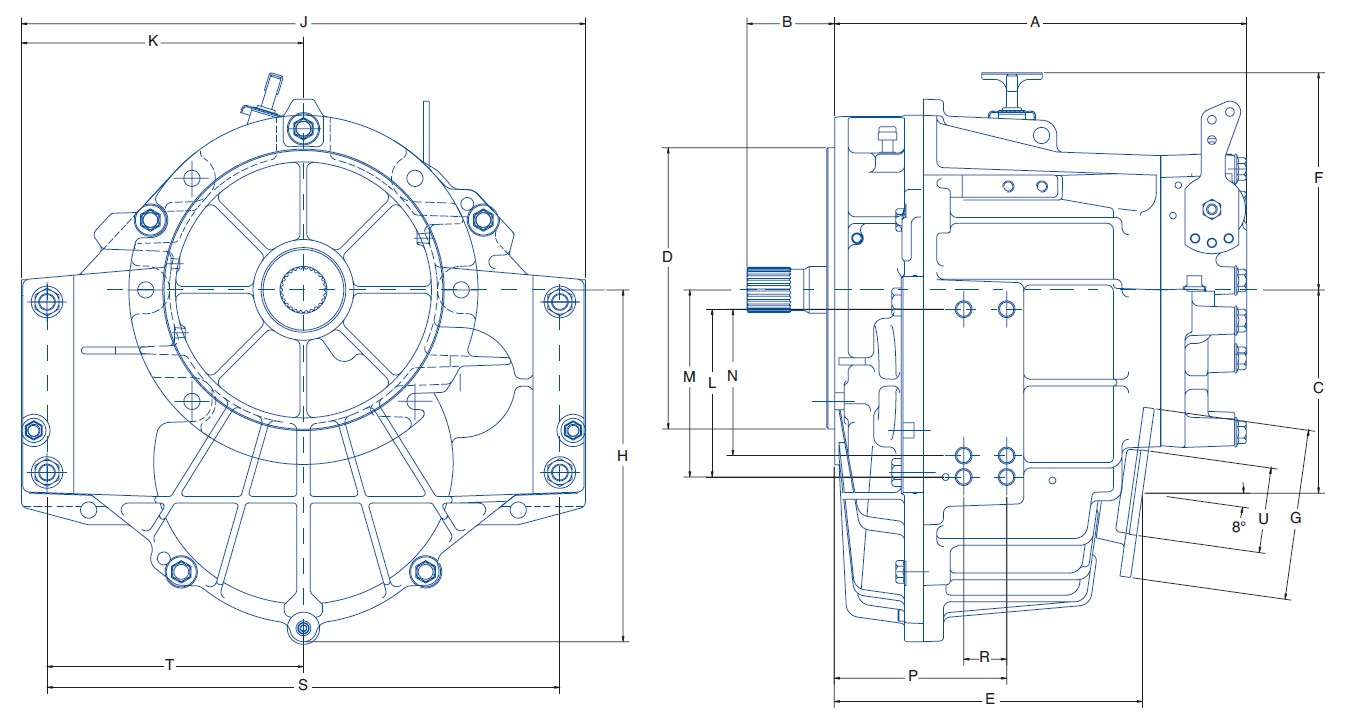

Dimensions For Liberty 3000 Series

inches (millimeters)
A B C D E F G H J K L M N P R S T U
12.09
(307.0)
2.56
(65.0)
5.95
(151.2)
8.25
(209.5)
8.98
(228.1)
6.38
(162.0)
5.00
(127.0)
10.31
(262.0)
16.53
(420.0)
8.26
(210.0)
4.92
(125.0)
5.49
(139.4)
4.29
(109.0)
5.05
(128.4)
1.26
(32.0)
15.04
(382.0)
7.52
(191.0)
2.50
(63.5)

General Information

Available Ratios: 1.00:1, 1.25, 1.50, 2.00, 2.50:1, 2.80:1
Input Shaft Spline Teeth: 26
Input Shaft Rotation: Standard automotive rotation
Output Shaft Rotation: Either direction
Approximate Dry Weight (direct drive): 114 lb. (51.7 kg.)
