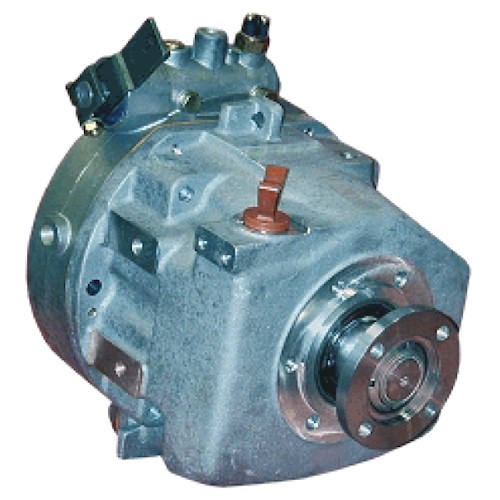

ZF 45 C Description

Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.

Suitable for high performance applications skiboats and waterjets.

Fully works tested, reliable and simple to install.

Design, manufacture and quality control standards comply with ISO 9001.

Compatible with all types of engines and propulsion systems, including water jets and surface piercing propellers, as applicable.

Max input torque and power can not be transmitted when shifting lever is in position «B». «B» position in used only forreverse operation during docking and low speed maneuvering.

ZF 45 C Features

Lightweight and robust aluminum alloy casing (sea water resistant).

Case hardened and precisely ground gear teeth for long life and smooth running.

Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.

B/W connection integrated with casing.

Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable.

Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode).

Replaceable oil filter cartridge.

The reversible oil pump makes the gearbox suitable for use with right hand or left hand rotation engine
